Air Handlers

The air handler is the indoor component of a heat pump system. It includes the fan and the heating/cooling coil. The air handler is designed for a particular refrigerant, so it must be matched with the heat pump or air conditioner.

We offer many air handlers with variable and multi-speed features that can provide enhanced indoor comfort by slowly ramping up to your thermostat setting rather than simply turning on at full speed. This alleviates the “cold air blow” often associated with single speed air handlers, and dramatically reduces system noise.

Carrier Air Handler Product Offering

Air Handlers - Lakebrink Heating & Air Conditioning
Qualifications - Lakebrink Heating & Air Conditioning
Air Handlers - Lakebrink Heating & Air Conditioning

Infinity® Fan Coil

View Brochure
Model Family: FE4A
Refrigerant Type: Puron®
Blower Motor: Variable-speed
Factory Warranty Parts: 10-year parts limited warranty

Manufacturer's Stated Benefits:

  • Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help ensure reliable, efficient operation
  • Sloped, corrosion-free drain pan design helps reduce mold and bacteria build-up
  • Air purifier and humidifier compatible
  • Infinity intelligence enables self-configuration and easy troubleshooting with Infinity control
  • Fully insulated cabinet
  • Advanced temperature control
  • Ultra-low power consumption during fan-only operation
  • Summer dehumidification is blower motor-enhanced
  • Supplemental, electrical-resistance heating packages available for field installation
  • Optional ArmorCoat™ tin-plating enhances corrosion resistance
  • Washable air filter
  • Recommended control: Infinity control
Air Handlers - Lakebrink Heating & Air Conditioning

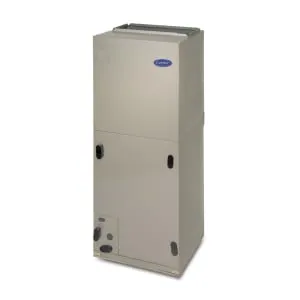

Performance™ Fan Coil

View Brochure
Model Family: FV4C
Refrigerant Type: Puron®
Blower Motor: Variable-speed
Factory Warranty Parts: 10-year parts limited warranty

Manufacturer's Stated Benefits:

  • Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help insure reliable, efficient operation
  • Sloped, corrosion-free drain pan design helps reduce mold and bacteria build-up
  • Air purifier and humidifier compatible
  • Fully insulated cabinet
  • Advanced temperature control
  • Ultra low power consumption during fan-only operation
  • Supplemental, electrical-resistance heating packages available for field installation
  • Optional ArmorCoat™ tin-plating enhances corrosion resistance
  • Washable air filter
  • Recommended control: Performance Edge® relative humidity thermostat
Air Handlers - Lakebrink Heating & Air Conditioning

Comfort™ Fan Coil

View Brochure
Model Family: FX4D
Refrigerant Type: Puron®
Blower Motor: Multi-Speed
Factory Warranty Parts: 10-year parts limited warranty

Manufacturer's Stated Benefits:

  • Fixed speed model is energy efficient with savings of 2% to 3% in cooling costs.
  • Designed to match with environmentally sound Puron® refrigerant.
  • Equipped with a Thermal Expansion Valve (TXV).
  • 10-year parts limited warranty when properly registered.
Air Handlers - Lakebrink Heating & Air Conditioning

Comfort™ Fan Coil

View Brochure
Model Family: FB4C
Refrigerant Type: Puron®
Blower Motor: Multi-Speed
Factory Warranty Parts: 10-year parts limited warranty

Manufacturer's Stated Benefits:

  • Improved humidity control
  • Multi-flow piston metering device (TXV in 5-ton size only)
  • A sloped, corrosion-free drain pan design helps reduce mold and bacteria build-up
  • Fully insulated cabinet
  • Summer dehumidification is blower motor-enhanced
  • Supplemental, electrical-resistance heating packages are available
  • Multi-flow piston refrigeration management
  • Optional ArmorCoat™ tin-plating enhances corrosion resistance
  • Controls supported: Performance™ or Comfort™ series thermostats

Daikin Air Handlers

Air Conditioners - Lakebrink Heating & Air Conditioning
Air Handlers - Lakebrink Heating & Air Conditioning

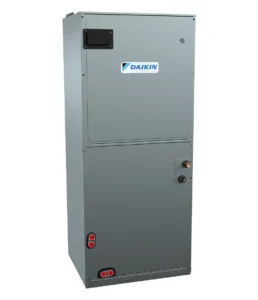

DVFEC Whole House Air Handler

View Brochure
Model Family: DVFEC
Refrigerant Type: R-410A
Blower Motor: Variable-Speed ECM
Factory Warranty Parts: 12-year parts Limited Warranty

Manufacturer's Stated Benefits:

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications.
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Thermostat provides adjustable low CFM for efficient fan-only operation
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21 inch depth for easier attic access
  • Tool-less filter access
  • Galvanized and leather grain-embossed finish
Air Handlers - Lakebrink Heating & Air Conditioning

DVPEC Whole House Air Handler

View Brochure
Model Family: DVPEC
Refrigerant Type: R-410A
Blower Motor: Variable-Speed ECM
Factory Warranty Parts: 12-Year Parts Limited Warranty

Manufacturer's Stated Benefits:

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • Compatible with the Daikin One+ smart thermostat and other Daikin communicating equipment
  • CFM indicator
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • Improved humidity and comfort control compared to units without ECM or EEV
  • Horizontal or vertical configuration capabilities
  • 21 inch depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Tool-less filter access
Air Handlers - Lakebrink Heating & Air Conditioning

Multi-position Air Handler

View Brochure
Model Family: DVPTC
Refrigerant Type: R-410A
Blower Motor: Variable-speed ECM blower motor
Factory Warranty Parts: 12-Year Parts Limited Warranty

Manufacturer's Stated Benefits:

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • ComfortNet ™ Communicating System compatible
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Auto-configuration of the airflow and tonnage in communicating mode
  • 3 kW - 25 kW electric heater kits
  • All-aluminum evaporator coil
  • Horizontal or vertical configuration capabilities
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • Rigid 21-inch deep cabinet for easy attic access
  • CFM indicator
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Fault recall of six most recent faults
  • Screw-less sides and back help to reduce condensation when installed in humid locations
  • Provides adjustable low CFM for efficient fan-only operation
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Improved humidity and comfort control
  • Galvanized, leather grain-embossed finish
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • Glue-less cabinet insulation retention
  • Tool-less filter access
Air Handlers - Lakebrink Heating & Air Conditioning

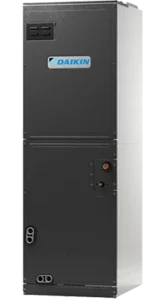

Multi-position Air Handler

View Brochure
Model Family: ASPT
Refrigerant Type: R-410A
Blower Motor: Multi-Speed ECM
Factory Warranty Parts: 12-Year Parts Limited Warranty

Manufacturer's Stated Benefits:

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • All-aluminum evaporator coil
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Coil mounting track for quick repositioning
  • Screw-less sides and back help to reduce condensation when installed in humid locations
  • Cabinet air leakage less than 2.0% at 1.0 inch H?O when tested in accordance with ASHRAE standard 193
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Cabinet air leakage less than 1.4% at 0.5 inch H?O when tested in accordance with ASHRAE standard 193
  • Galvanized, leather grain-embossed finish
  • 3 kW - 25 kW electric heater kits
  • Glue-less cabinet insulation retention
  • Rigid SmartFrame™ cabinet
  • Tool-less filter access
  • Horizontal or vertical configuration capabilities
